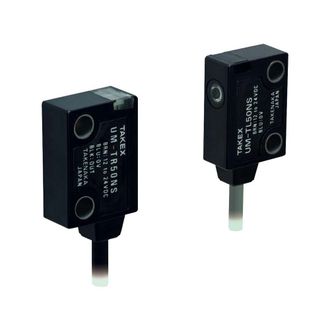

Фотоэлектрический датчик TAKEX UM-T50DNS
Detection method | Through beam type |
---|---|
Detecting distance | 500mm |
Detection object | dia.3mm (or more) Opaque |
Power supply | 12 - 24V DC ±10% / Ripple 10% or less |
Current consumption | Transmitter : 14mA or less Receiver : 16mA or less |
Output mode | NPN open collector Rating: sink current 100 mA (30 VDC) or less |
Operation mode | Dark-ON |
Response time | 0.5ms or less |
Operating angle | 13° (at receiver) |
Light source (light wavelength) | Red LED (660nm) |
Indicator | Operation indicator (red LED) Stability indicator (green LED) |
Material | Case : Polycarbonate; Volume case: PBT Lens : Polyarylate |
Connection | Cable type (outer diameter. 2.8) Transmitter 0.15 mm2 2 cores 2 m length (gray) Receiver 0.15 mm2 3 cores 2 m length (black) |
Mass | Transmitter : Approx. 30g Receiver : Approx. 35g |
Notes | * Length of cable between sensor and in-line sensitivity adjustment: 300 mm (fixed) |
Accessories | Instruction manual, mounting screw |
Любое наименование оборудования TAKEX Вы можете заказать связавшись с нами по e-mail:
